A Pictorial Tour of KCBS

KCBS history

Here are some images and recollections from the folks who worked at KCBS, the 50 kW flamethrower in San Francisco.

KCBS traces its history from what is arguably one of the very first broadcast stations, Charles "Doc" Herrold's station. With a history stretching from 1909, this facility is almost 100 years old!



Since 1953, KCBS has been operating off of four towers north of San Francisco, at Novato, California

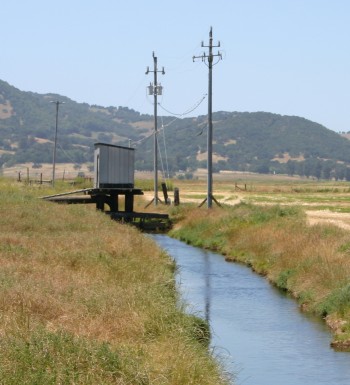

The pump This pump is necessary to keep the field from being underwater. The elevation is 6 feet under sea level!



In 1950, the transmitter site was moved to Novato,
approximately 25 miles north of San Francisco.

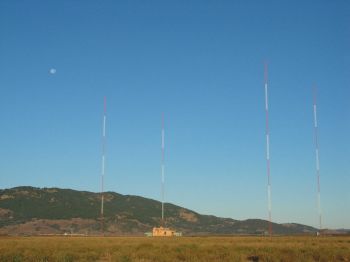

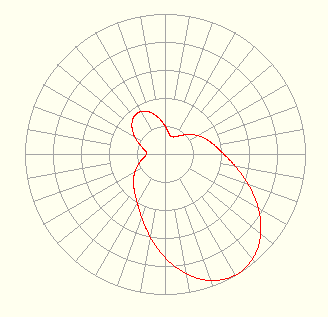

The four tower array at Novato sends as much as 6 V/m at 1 km,
the equivalent of 125 kW to the SE.

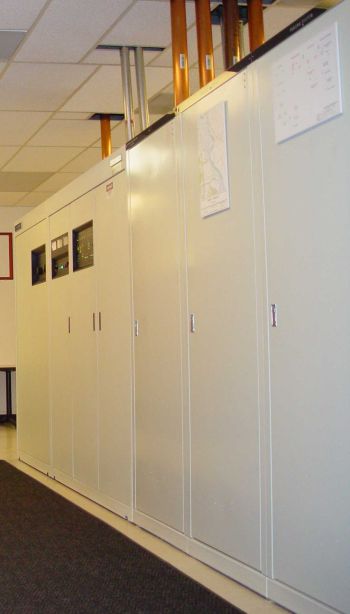

The KCBS DX-50 Transmitter and Phasor.

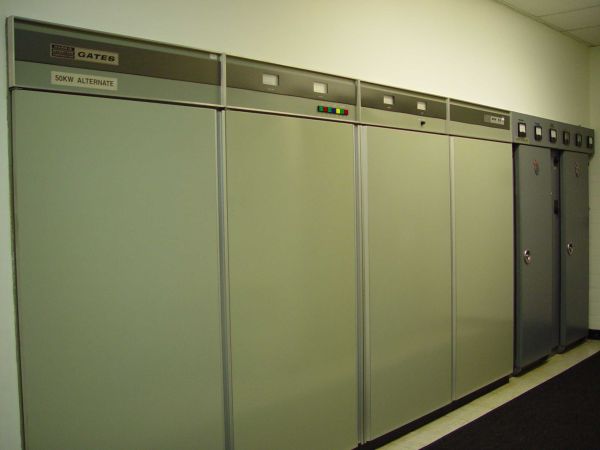

The auxiliary transmitters, an MW-50 and a Continental 316B

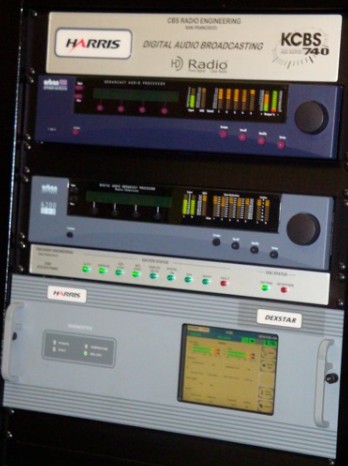

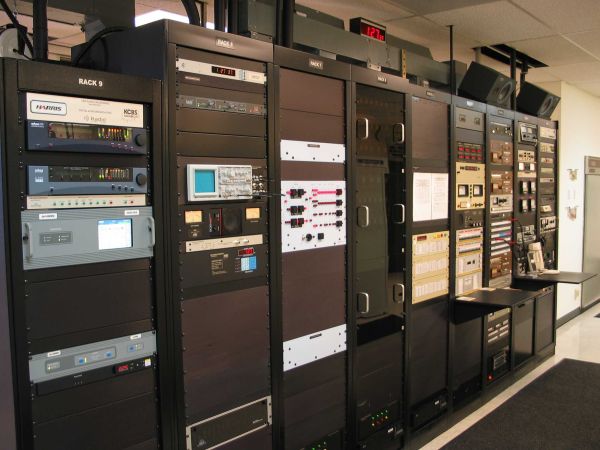

This is the KCBS equipment racks ... with the new IBOC gear in the far left rack.

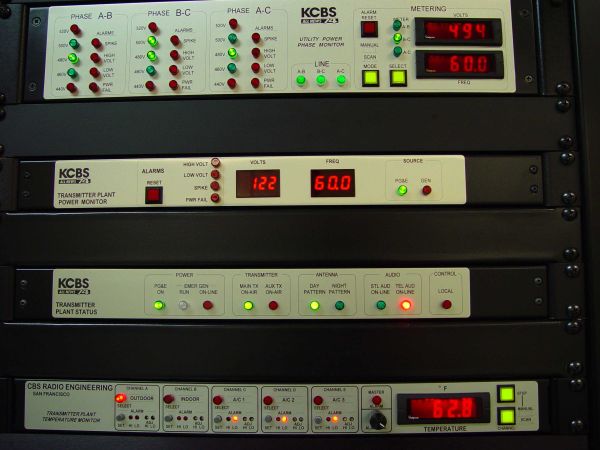

To ensure the power feeds are as clean as possible, KCBS engineers have built custom monitoring gear.





My sincere thanks to Dave Wigfield for sharing his photos of the KCBS site.
